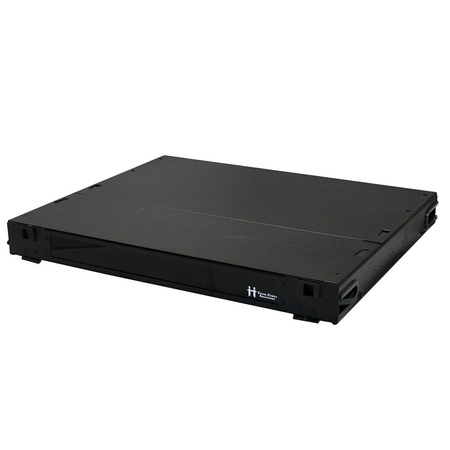

1U Premium Rack Mount Fiber Patch Panel, Standard Density, Pre-Loaded with 1 Single Mode 6F SC/APC Insert & 2 Blanks
#FLP-03B-04601-201-01901
1U Premium Rack Mount Fiber Patch Panel, Standard Density, Pre-Loaded with 1 Single Mode 6F SC/APC Insert & 2 Blanks
- 1U rack mount fiber optic panel
- Factory kitted with (6) fibers terminated with (1) 3 duplex SC/APC Single Mode, 6F, OS1/2, Green (FPP-AD-SA2-03); (1) 12 Fiber metal splice tray (ST-M-12); (1) Sub-Distribution Style, Corning Clearcurve BIF, SM 9/125/900um, 6 fiber, SC/APC simplex, 3M (T6-SA119-BL-SRD-003M); and (2) blank adapter plates (FPP-AD-BLANK)
- 16 gauge steel construction with black powder coat paint
- Fits standard 19in. or 23in. rack
- Non-captive mounting ears for low-effort, quick mounting
- E-Z slide premium tray
- Magnetic door for easy access even in crowded racks
- Tinted Lexan™ front cover
- Removable top panel and front faceplate
- 1.75in. x 19in. x 14in. overall dimensions
Product Information
| Material | Metal |
|---|---|
| Color | Black |
| UNSPSC | 43223337 |
| Certifications | RoHS |
| Cable Connectors Side A | SC/APC |
| Cable Connectors Side B | SC/APC |
| Panel Insert Slots | 3 |
| Panel Insert Type | LGX |
| Rack Spaces | 1U |
| Strand Conductor Count | 6 |
