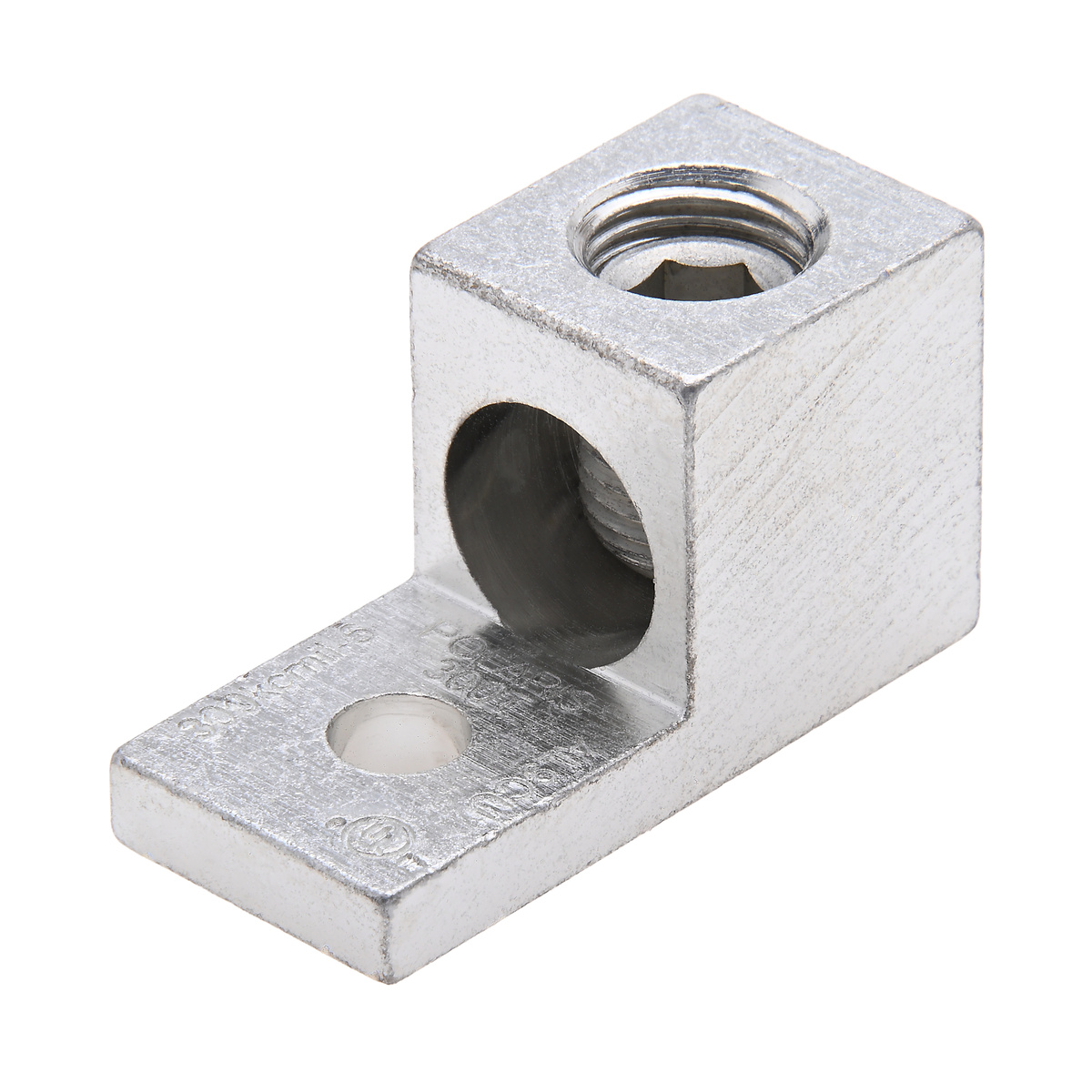

Aluminum Dual Rated Lug 300 MCM – 6 AWG
#300T
Aluminum Dual Rated Lug 300 MCM – 6 AWG with 5/16″ Bolt Size for use with both copper and aluminum conductors.
- Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- Temperature Rating 90 degrees C
- Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Tin Plated |
| Pack Qty | 24 |
| GTIN | 662381001078 |
| UPC | 662381001078 |
| EAN | 0662381001078 |
| UNSPSC | 39121466 |
| Ul Standard | UL 486A-486B |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.25 |
| Tang Length | 1 |
| Wire Range | 300 MCM – 6 AWG |
| Assortment | Aluminum Mechanical Terminations |
| Application | Terminate |
Resources
Documents
- POL_AL-CU_MCH_ProdXRef_DIGITAL.pdf Download
