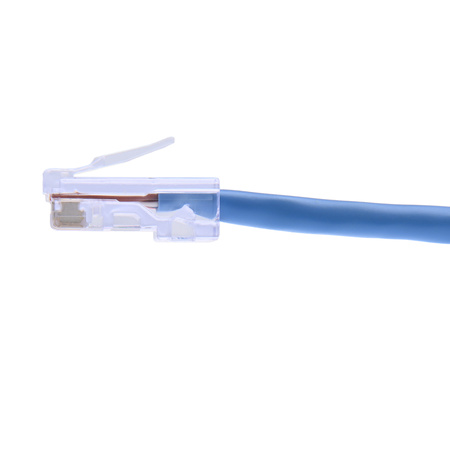

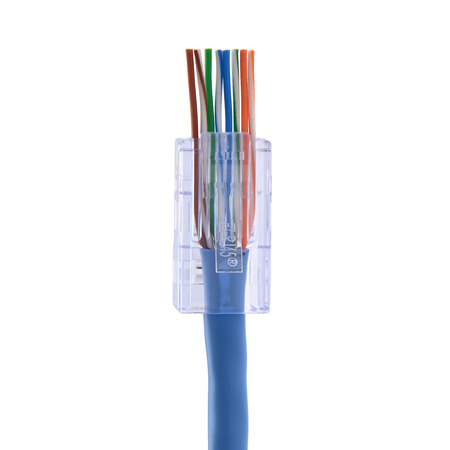

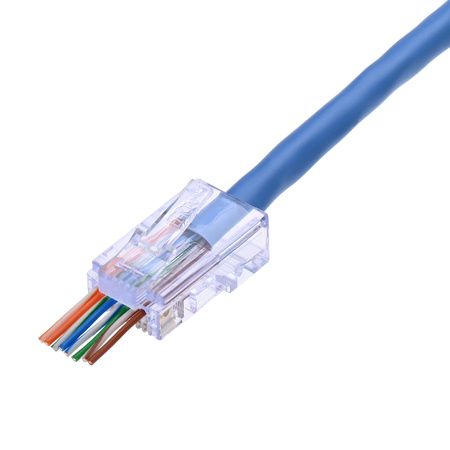

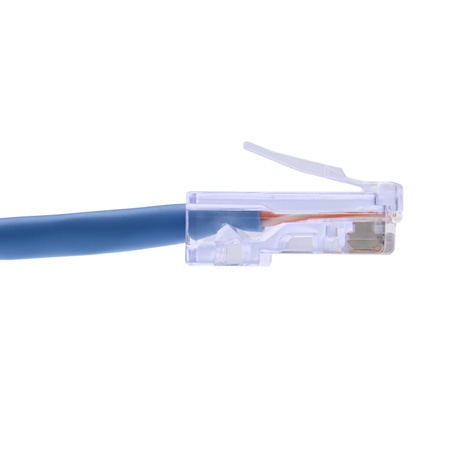

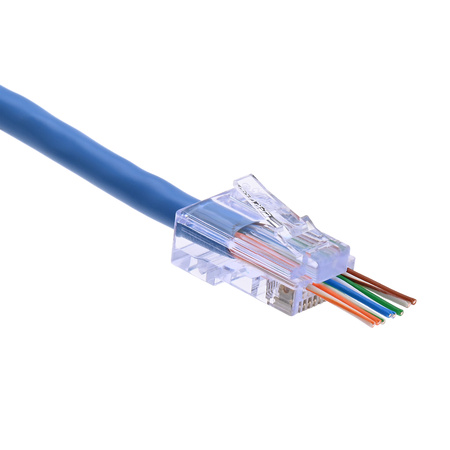

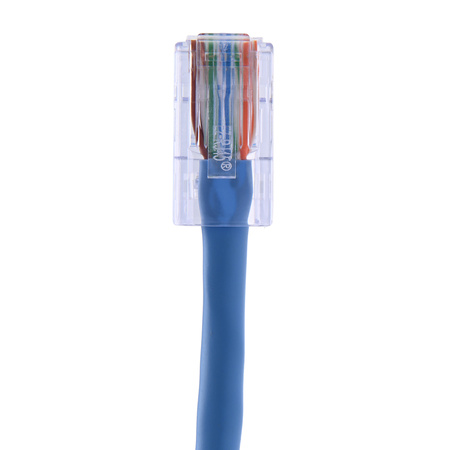

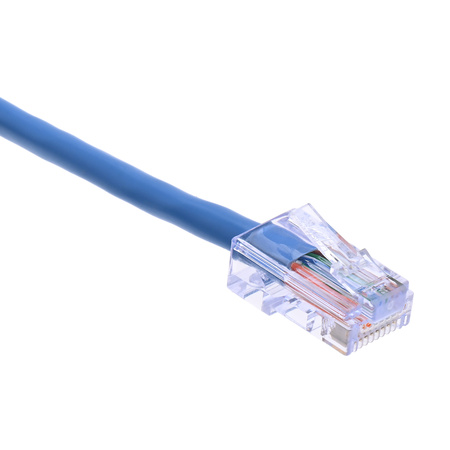

EZ-RJ45 Pass-Through RJ45 Connectors, Unshielded CAT5/5E — 100pcs in Box

#100003B

EZ-RJ45 Pass-Through RJ45 Connectors, Unshielded CAT5/5E — 100pcs in Box

  • EZ-RJ45 pass-through RJ45 connectors
  • Unshielded
  • Package includes 100 pieces

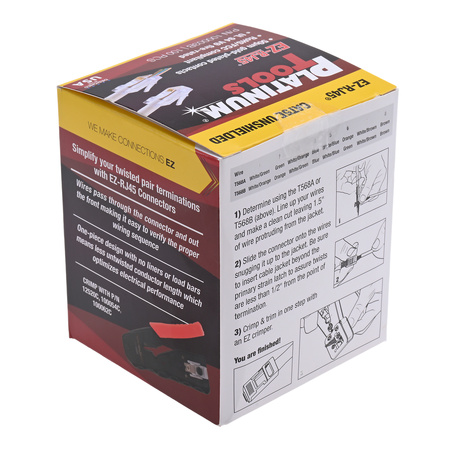

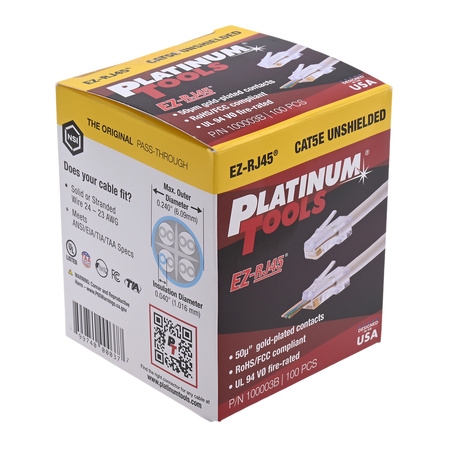

  • Box packaging
  • 0.240” (6.09mm) max cable outer diameter
  • 0.040” (1.016mm) max insulation diameter (conductors)
  • Compatible with solid or stranded 24 - 23AWG twisted pair cable
  • 50 micron gold plated contacts
  • Clear (transparent) plastic
  • Recommended for data applications only
  • Not recommended for PoE applications
  • Rated for up to 1G bandwidth
  • Meets ANSI/EIA/TIA/TAA specifications
  • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
  • Recommended crimp tools: 100062, 100054 or 100004

Product Information

Material Polycarbonate
Color Clear
Pack Qty 100
GTIN 00899740000377
UPC 899740000377
EAN 0899740000377
UNSPSC 39121444
Origin Country US
Certifications RoHS and UL
Ul Standard UL Listed E188111
Spec Cat5e
Max Insulated Wire Diameter 0.040 Inches (1.016mm)
Max Cable Outer Diameter 0.240 Inch (6.09mm)
Cable Type CAT6
Connector Style Unshielded
Connector Termination Crimp
Connector Type 71af347b-0c87-4b72-9404-28e33d56ef29

Resources

Documents

  • 1562106403EZ-RJ45_CONNECTORS_V16_070119.pdf Download
