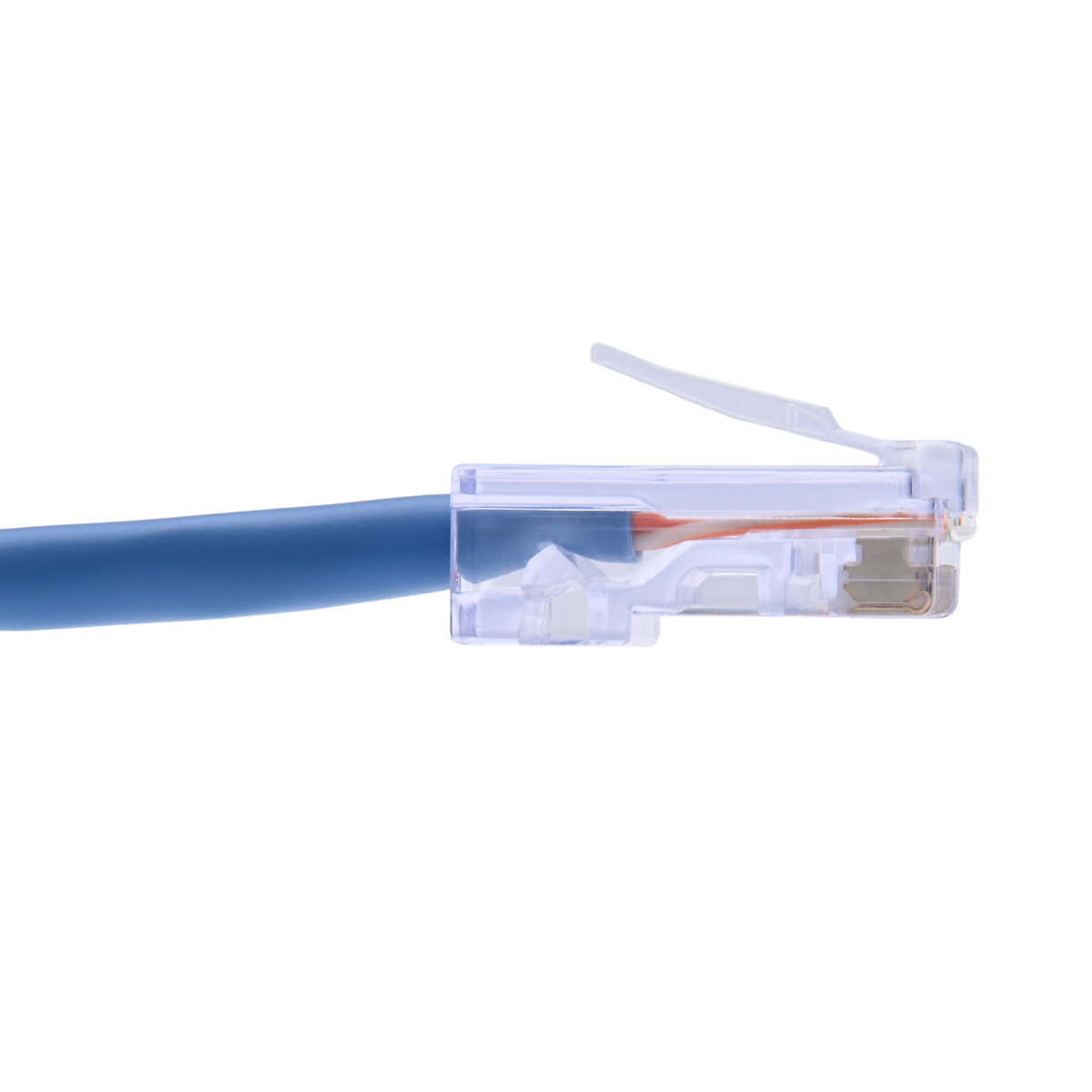

EZ-RJ45 Pass-Through RJ45 Connectors, Unshielded CAT5/5E — 50pcs in Clamshell

Pass-Through (EZ) RJ45 Connectors

#100003C

EZ-RJ45 Pass-Through RJ45 Connectors, Unshielded CAT5/5E — 50pcs in Clamshell

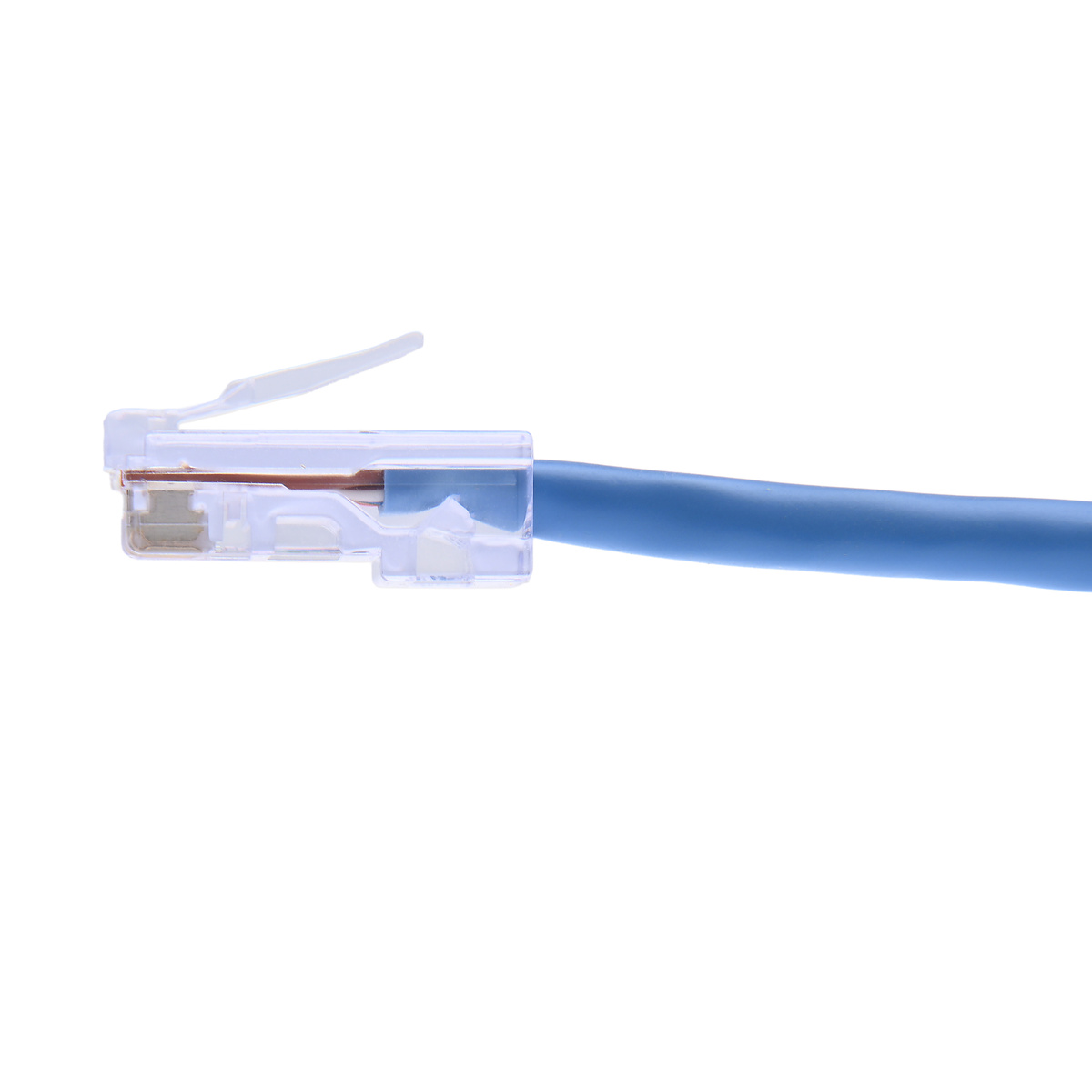

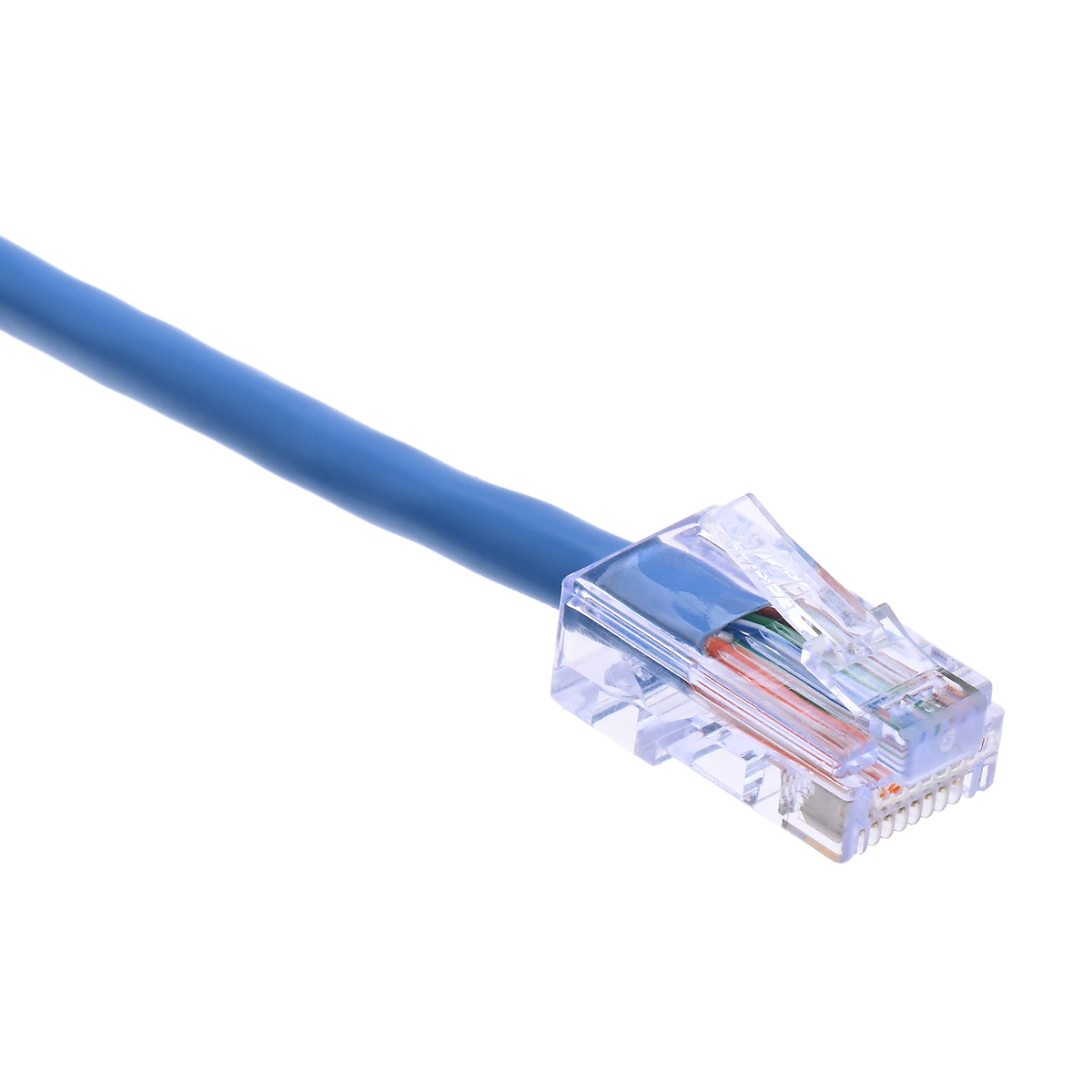

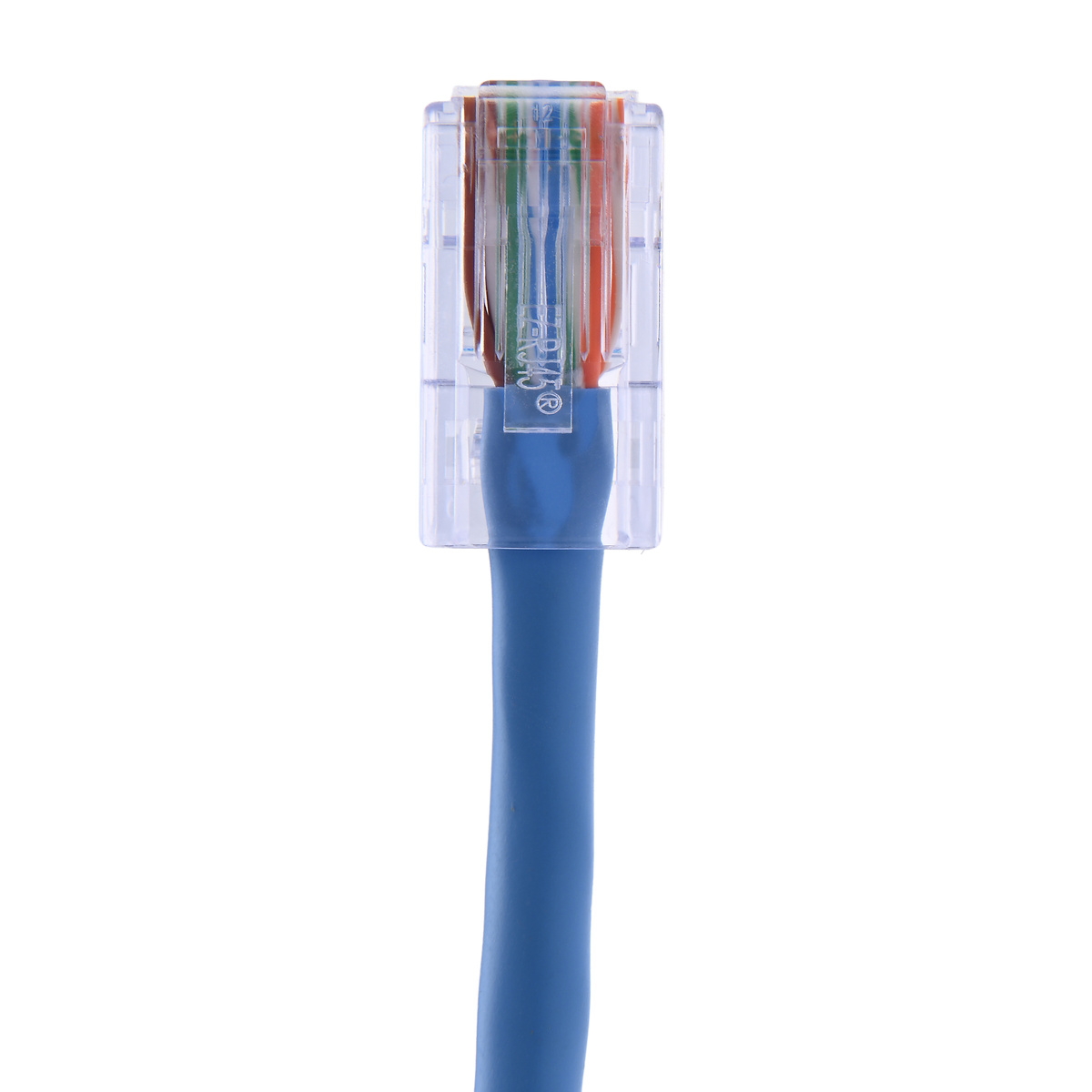

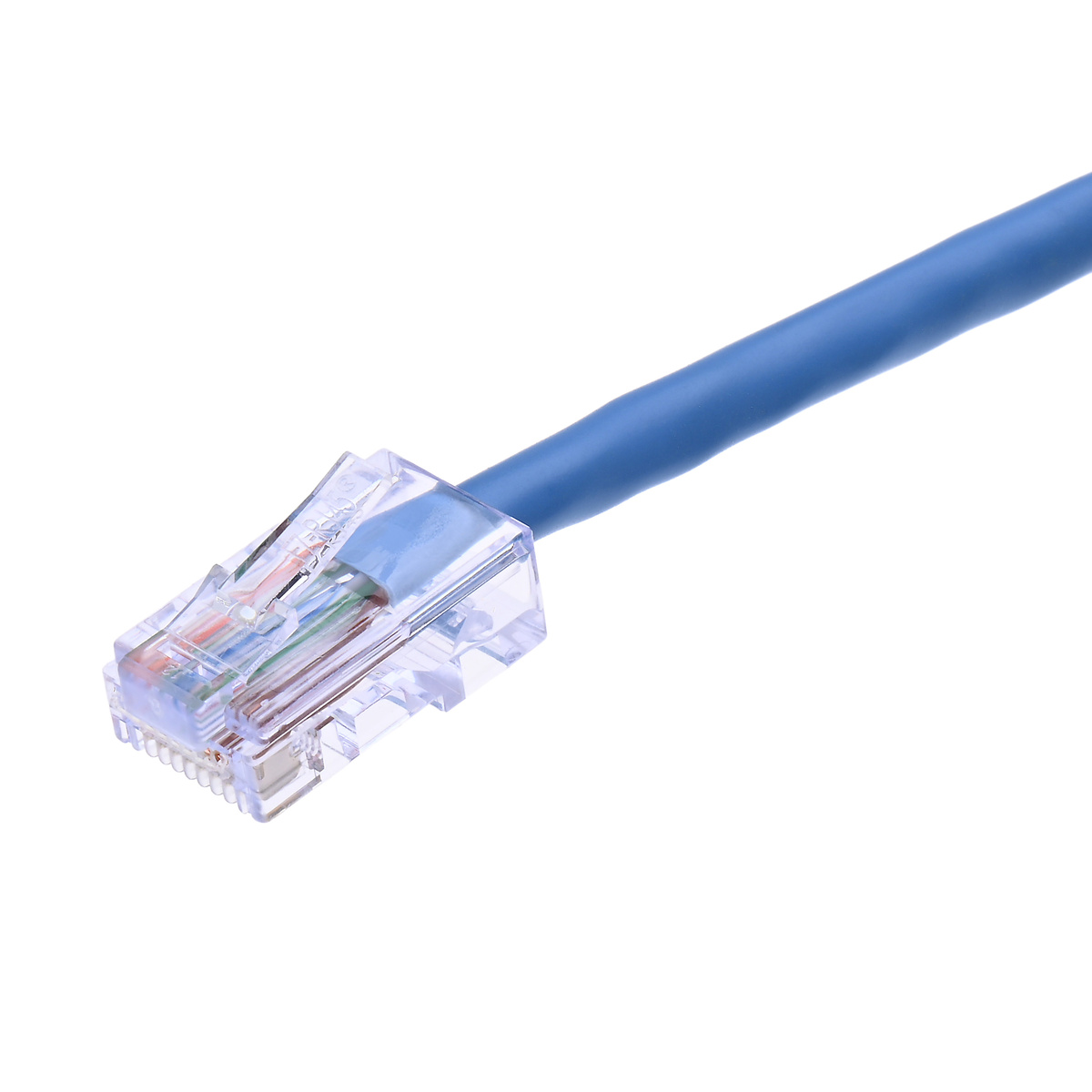

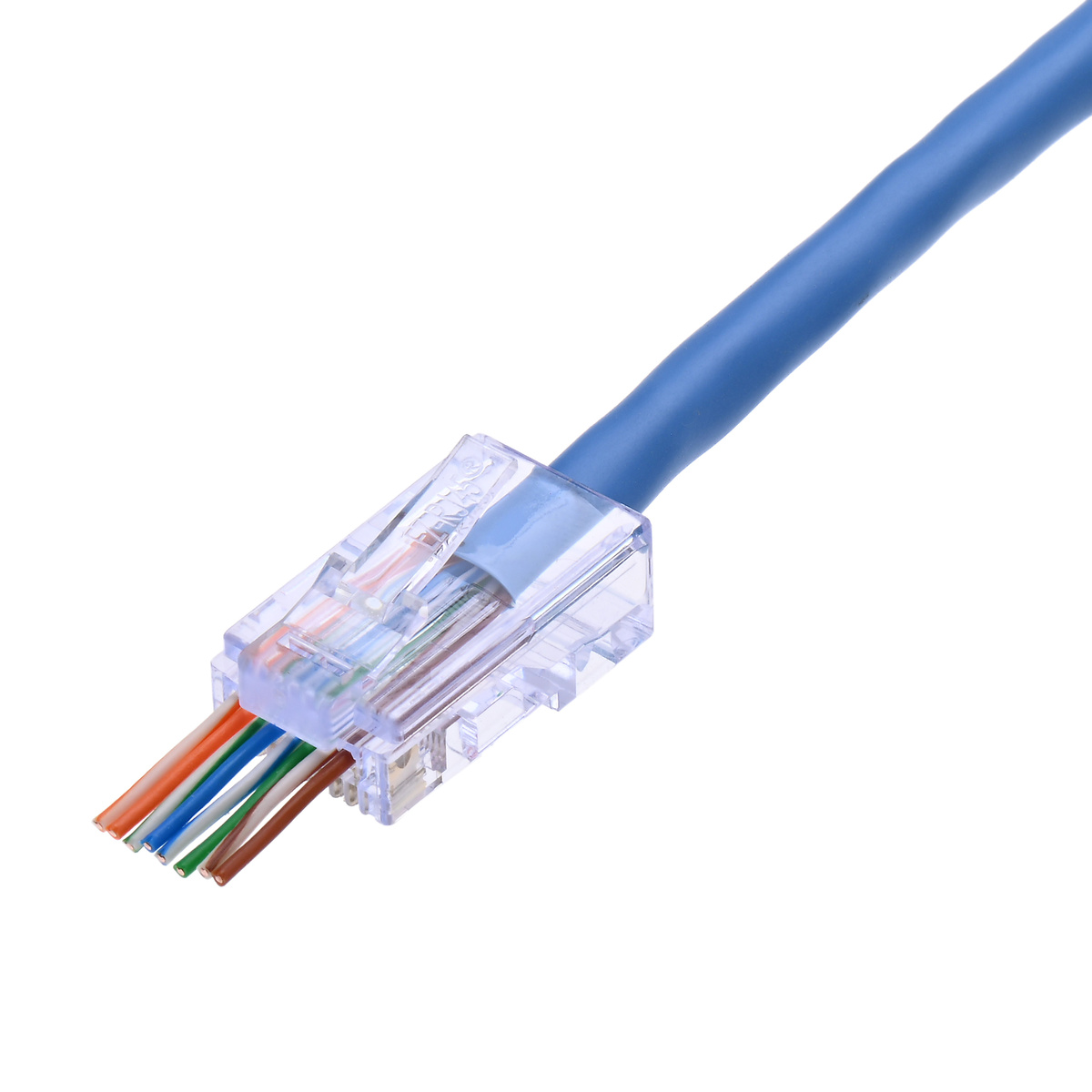

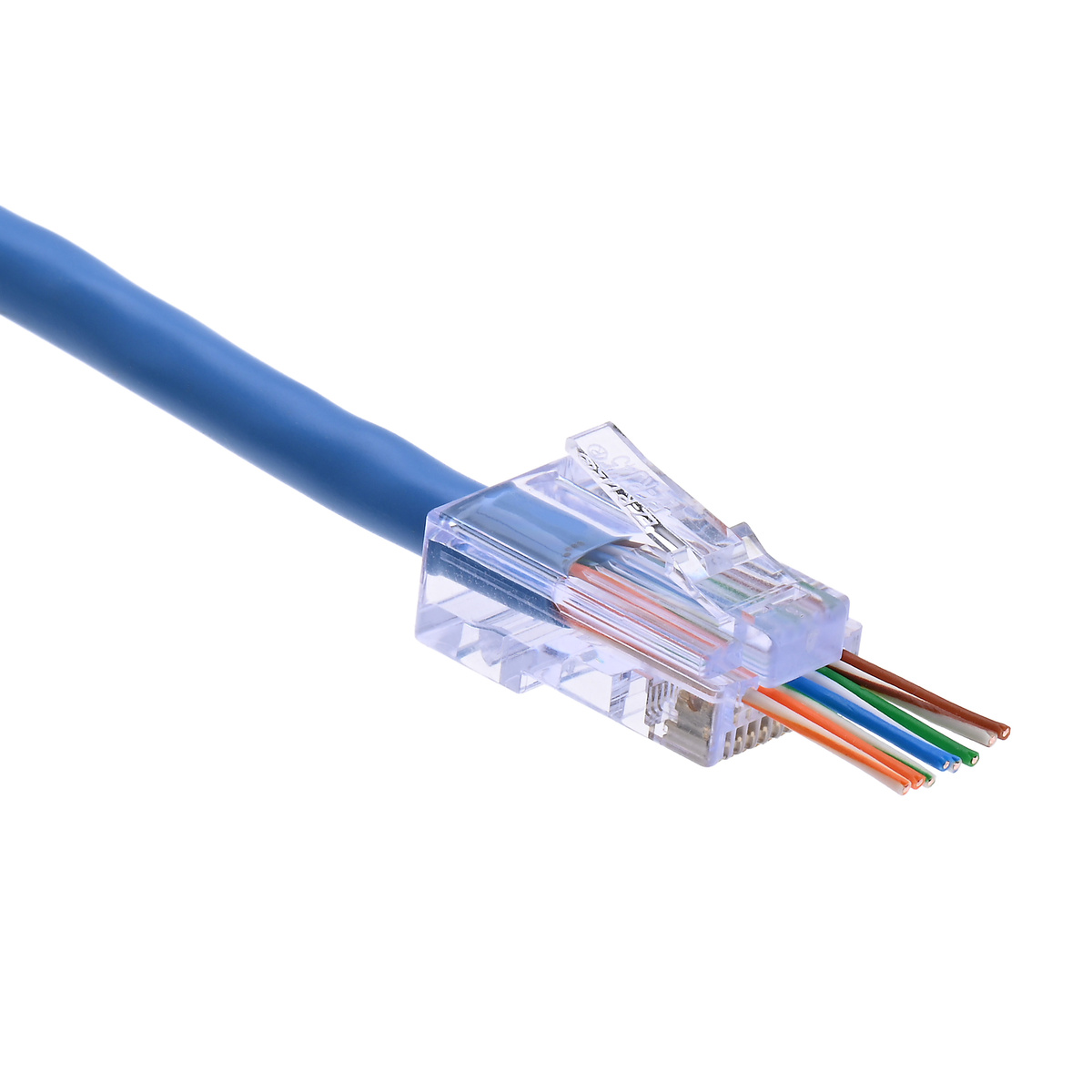

• EZ-RJ45 pass-through RJ45 connectors
• Unshielded
• Package includes 50 pieces

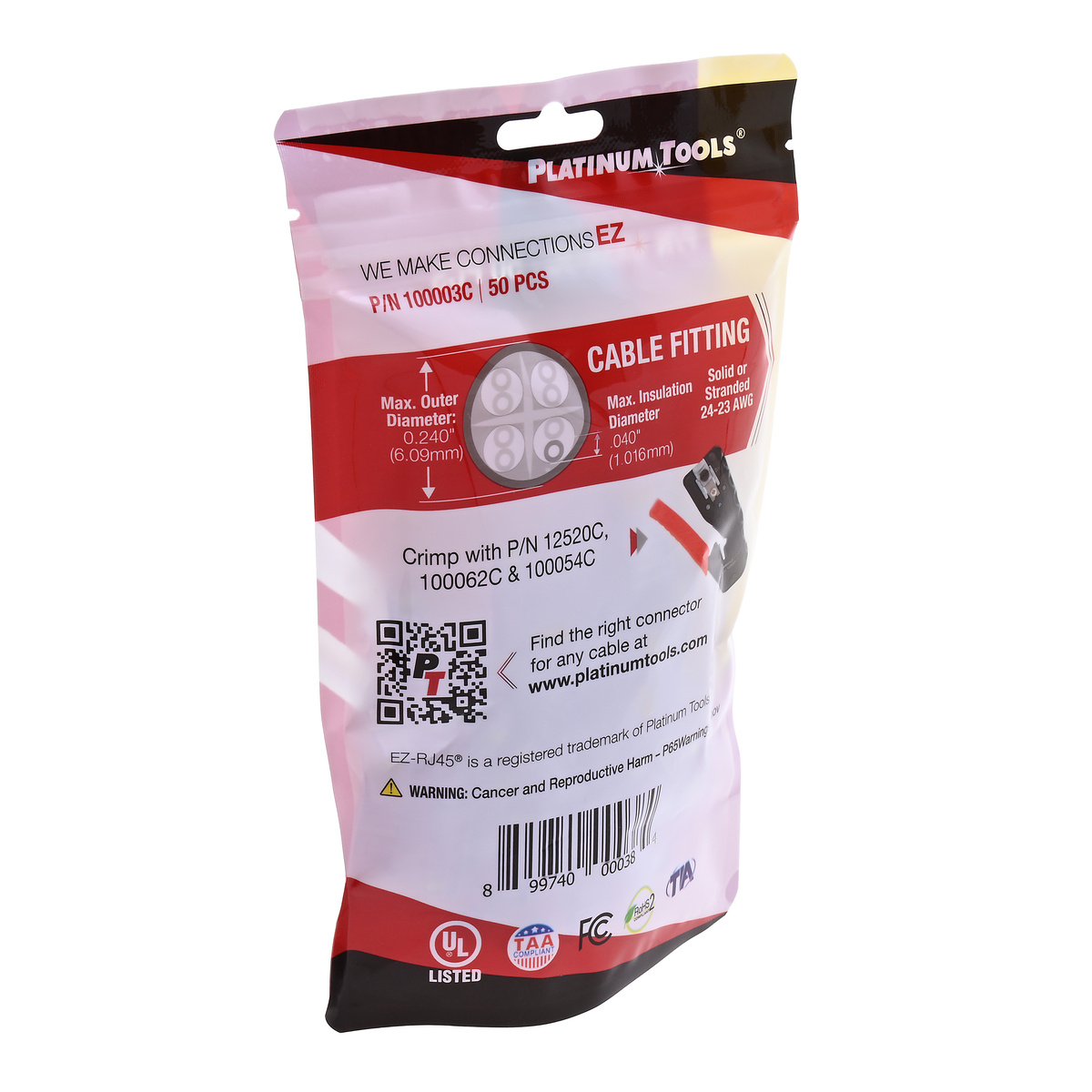

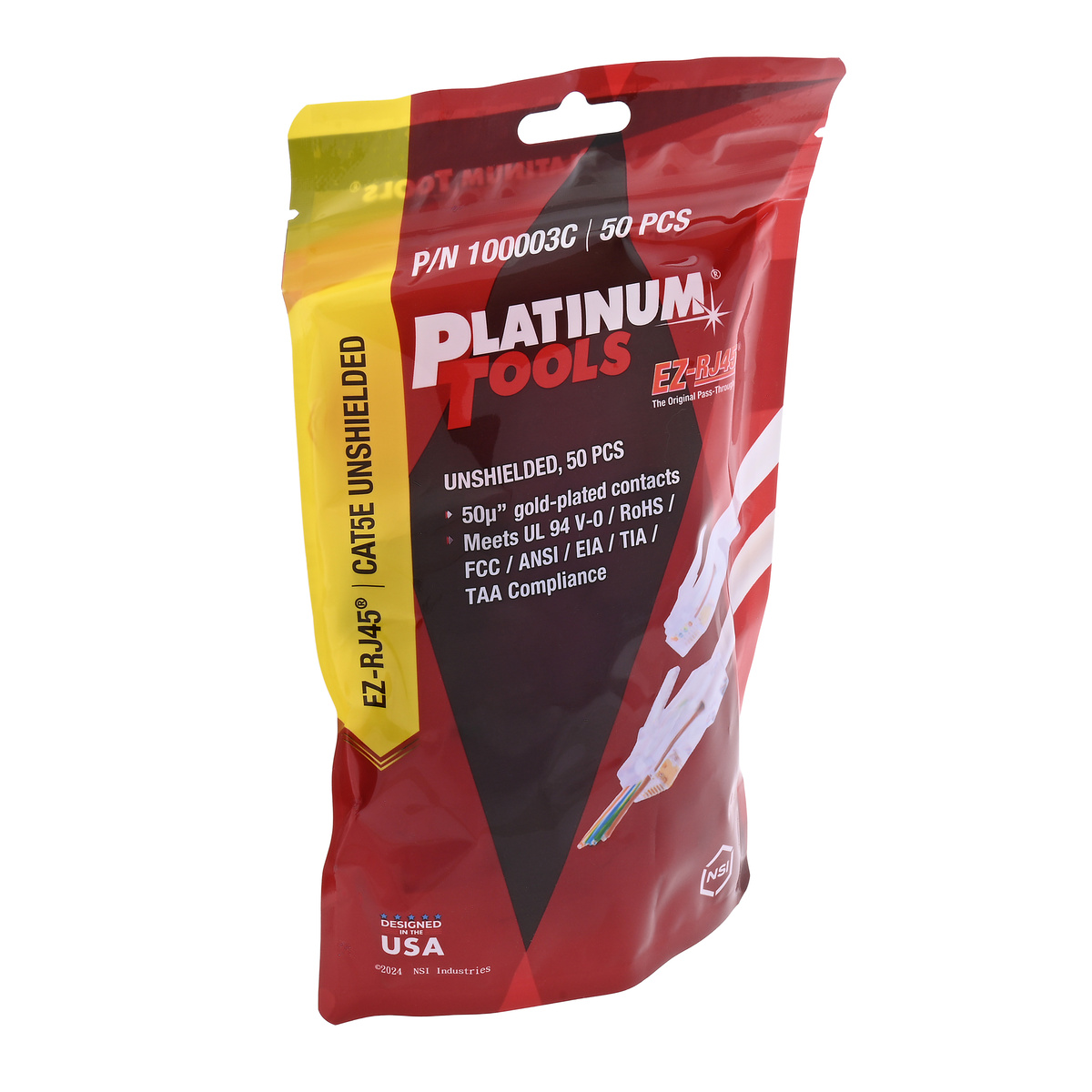

• Retail-ready clamshell packaging
• 0.240” (6.09mm) max cable outer diameter
• 0.040” (1.016mm) max insulation diameter (conductors)
• Compatible with solid or stranded 24 - 23AWG twisted pair cable
• 50 micron gold plated contacts
• Clear (transparent) plastic
• Recommended for data applications only
• Not recommended for PoE applications
• Rated for up to 1G bandwidth
• Meets ANSI/EIA/TIA/TAA specifications
• UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
• Recommended crimp tools: 100062, 100054 or 100004
