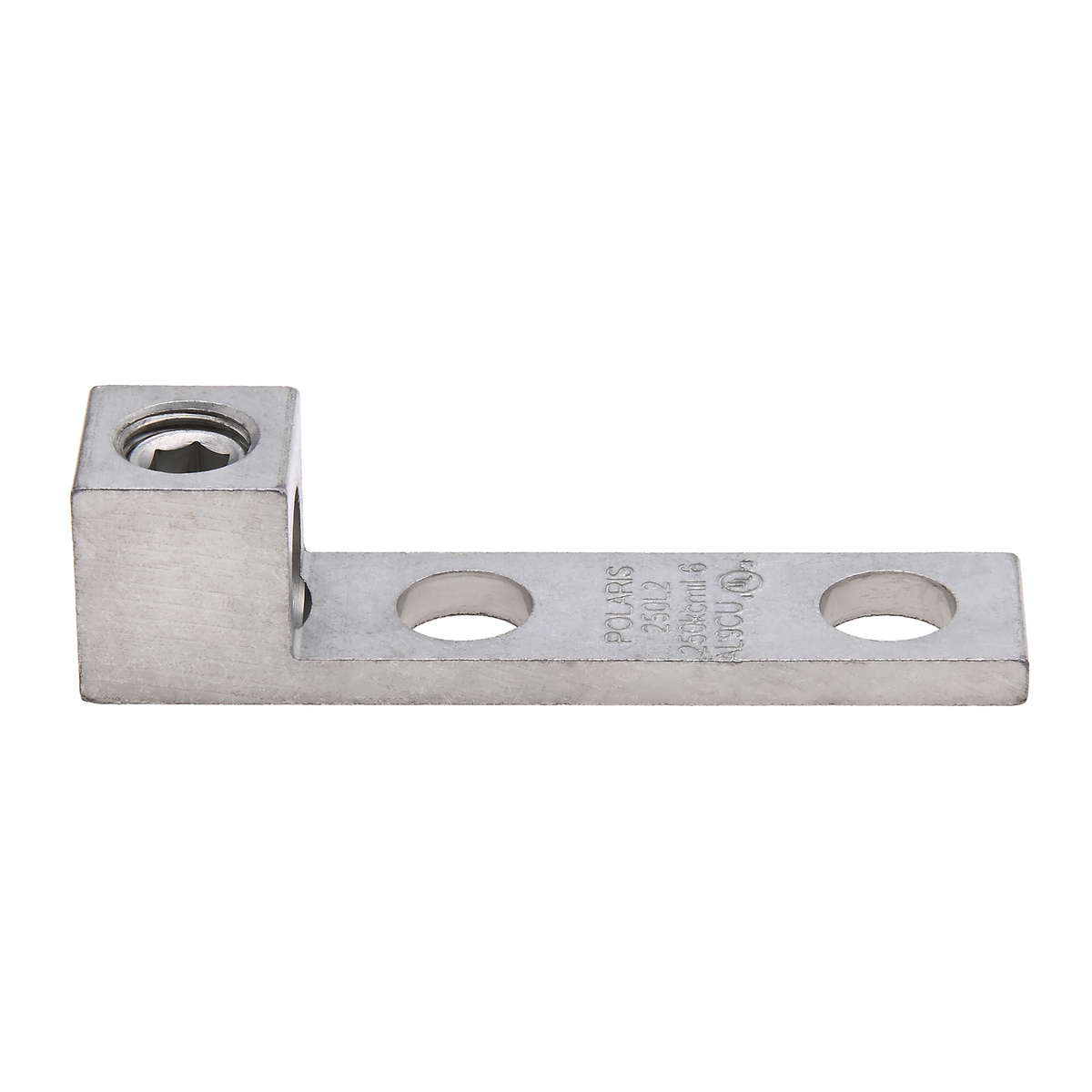

Nema Panel Lug 250-6
#250L2
Nema Panel Lug 250-6
- Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- All hole spacing is NEMA standard of 1.750 inch
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Tin Plated |
| Pack Qty | 15 |
| GTIN | 662381001306 |
| UPC | 662381001306 |
| EAN | 0662381001306 |
| UNSPSC | 39121466 |
| Ul Standard | UL 486A-486B |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.31 |
| Tang Length | 3.09 |
| Hole Spacing | 1.75 |
| Wire Range | 250 MCM – 6 AWG |
| Assortment | Aluminum Mechanical Terminations |
| Application | Terminate |
Resources
Documents
- POL_AL-CU_MCH_ProdXRef_DIGITAL.pdf Download
