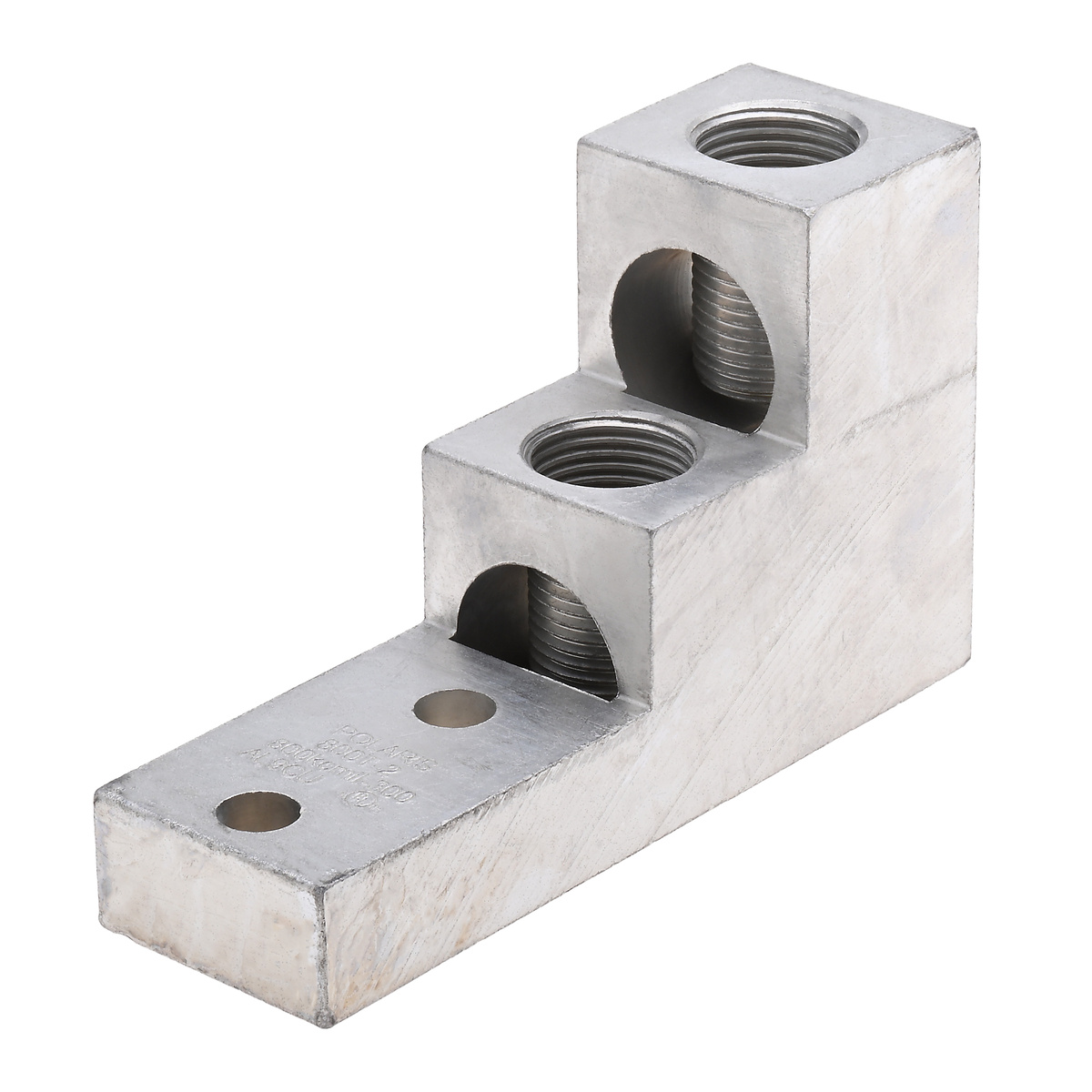

Step Panel Lug (2)800-300
#800T-2
Step Panel Lug (2)800-300
- Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | 6061T-6 Aluminum Alloy |
| Finish | Tin Plated |
| Pack Qty | 2 |
| GTIN | 662381001856 |
| UPC | 662381001856 |
| EAN | 0662381001856 |
| UNSPSC | 39121466 |
| Ul Standard | UL 486A-486B |
| Conductor Type | Copper, Aluminum |
| Tang Thickness | 0.75 |
| Tang Length | 2.34 |
| Hole Spacing | 1.38 |
| Wire Range | 800 MCM – 300 MCM |
| Assortment | Aluminum Mechanical Terminations |
| Application | Terminate |
Resources
Documents
- POL_AL-CU_MCH_ProdXRef_DIGITAL.pdf Download
